4 BIKE SUPER RFS RACK
$3,070.00 Inc. GST
Key Features
- New super swing arm for easy access to the rear of all cars, utes and vans.
- Blue Zinc Plated for ultimate weather protection (Black Powder Option Available – Refer Below)
- Load rated Rope Fastening System (RFS) to properly secure your bikes to the rack (trusted by Blue Dirt shuttling thousands of bikes a year on their new shuttle trailers).
- Full e-bike compatibility.
- Single Trail for Life warranty.
- Designed, engineered & fabricated in house.
- Single Trail number plate board is included with rack.

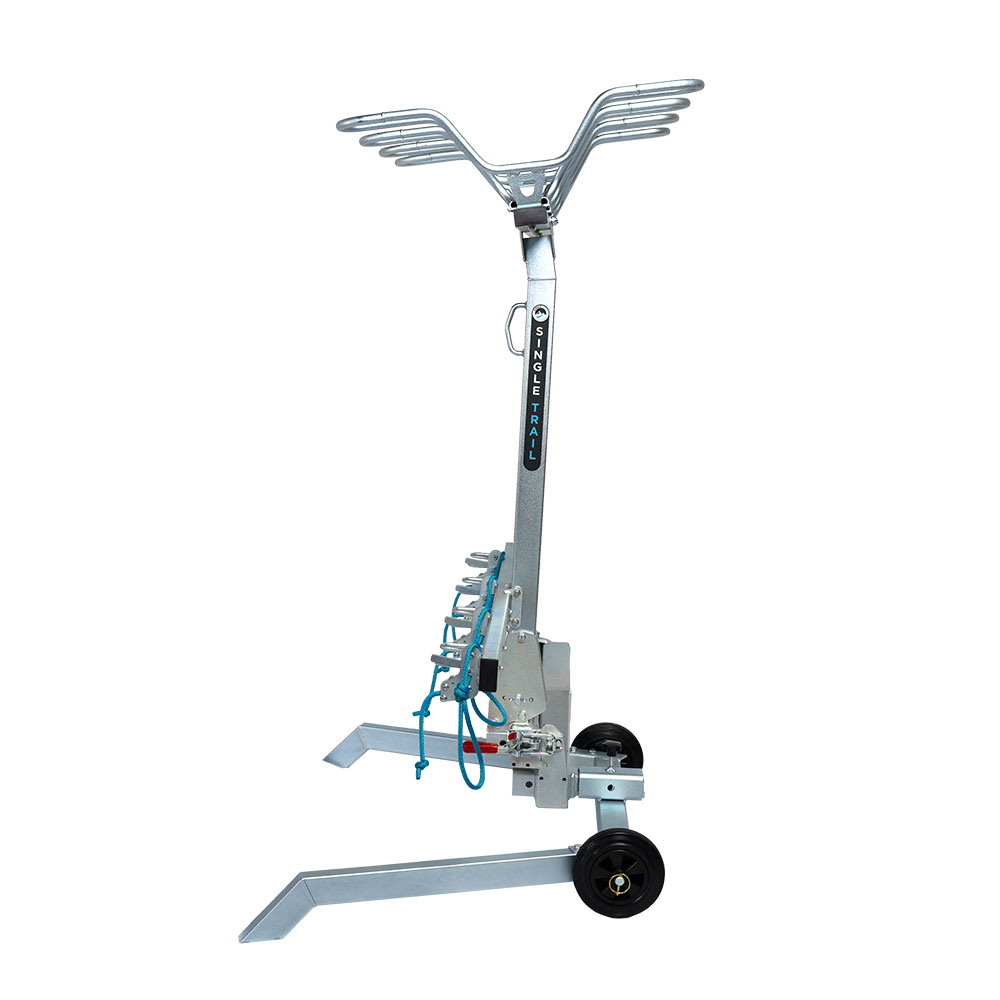

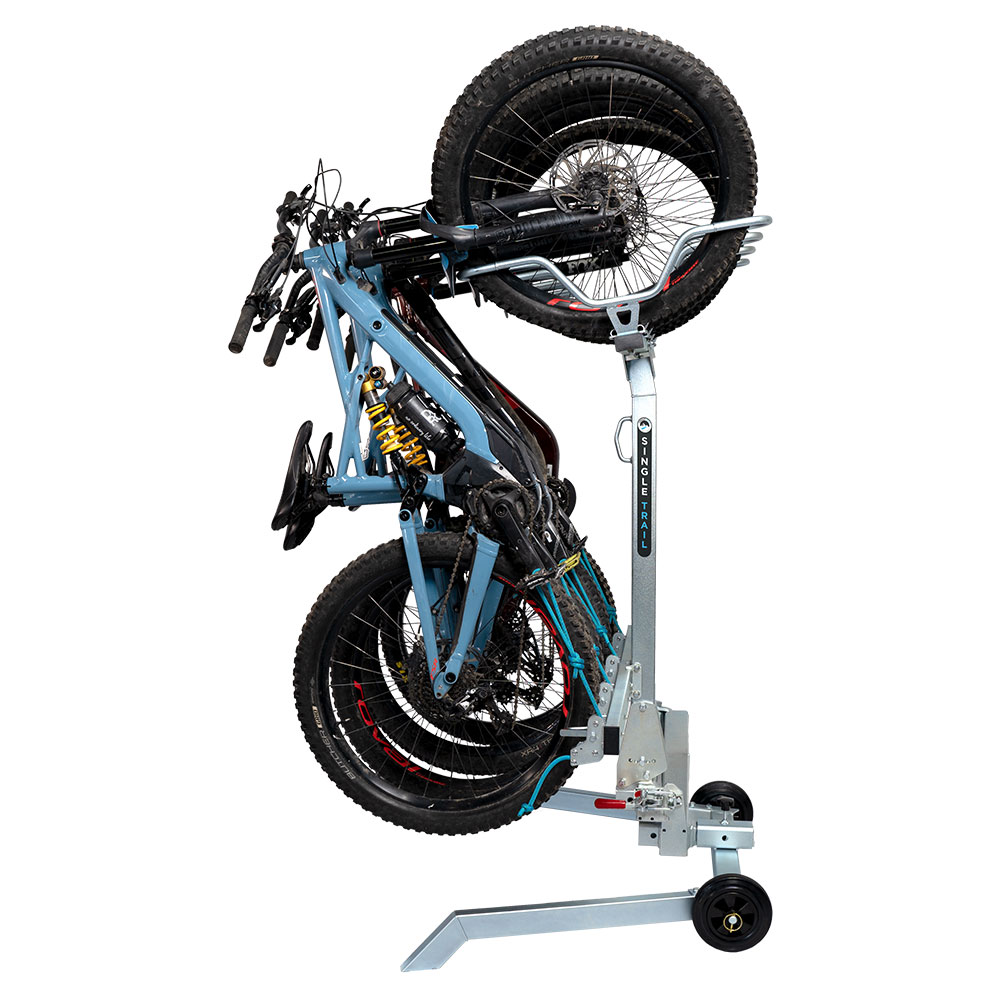

- Garage stand in images is not included and can be purchased separately.
Check this rack fits your car with our downball weight calculator.
POWDER COAT – TEXTURED BLACK
Add Textured Black Powder Coat
Powder Coated Products are naturally porous and don’t always offer the best protection to the steel surface.
All of our racks are Zinc Plated which offers great protection against corrosion and repairs itself when chipped for a long lasting finish.
We offer a Textured Black Powder Coat option on all of our racks which is applied directly over the already primed and zinc plated steel.
Free Shipping
We offer free shipping Australia-wide. View our estimated delivery times.
Assembly Tools Required
- 13mm x2, 16mm, 17mm, 18mm and 19mm spanners or multiple shifters
- 24mm Spanner for Anti-Wobble (Included)
ORDER PROCESSING
Refer to stock levels under price.
If a item is listed as “in stock” it will take 3 – 5 days to process prior to shipping.
Items will occasionally be on back order. If a item is ordered on back order it can take up to 3 weeks to dispatch.
Please contact us if you would like a clearer indication of lead times or an expedited delivery.
Specifications
Rack Weight | 51kg |
Rack Width (Unloaded) | 1210mm |
Rack Width (Loaded) | 1500mm |
Clearance Dimensions | View Rack Dimension Diagrams |
Bike Capacity | 4 Bikes |
Wheel Basket Capacity | 35kg |
Hitch Mount | 50mm / 2 Inch |
Video Gallery
Features
Accessing the rear of any vehicle just got easier.
The super swing arm has single touch, tilt & swing opening that fully clears the rear of cars, utes and vans.
It’s built tough so you can carry up to 150kg worth of bikes no worries.
We’ll almost guarantee it’ll fit the rear of any vehicle with multiple points of adjustability along with customisable side plates and tongue tube extensions available on purchase.
Our world first innovation the integrated anti-wobble mechanism. We’ve done away additional bolts and plates and integrated an anti-wobble system into our rack.
Using a heavy duty bolt and engineered nut plate simply do it up and you’ll remove most slop and sway, making it ready to take on those sketchy trail uphill runs.
No bike to bike contact. Extra-wide 350mm spacing between bikes also separates each bike, keeping handlebars and brake levers away from top tubes.
We wanted to develop the quickest and most secure way to carry your bikes, ideal for making hundred of shuttle runs. Our patented Rope Fastening System is the answer.
Using marine grade rope simply looped around the pedal and locked in tight using a cam that gets tighter the more it’s pulled.
Our marine rope has limited elasticity, so your bike stays in place without the bungee effect that’s experienced when using elastics or bungee cords to hold your bike in place.
Specifically designed to put load into the bike exactly where they’ve been designed to take it. As trusted by Blue Dirt Shuttles who are taking 1000’s of bikes along rough shuttle trails every year.
Whether you’re carrying weight-conscious carbon enduro bikes or cumbersome e-bikes, we’ve got your back.
Each wheel basket has been engineered to carry up to 30kg per bike, the critical component in the rack’s integrity.
The tongue and pivot are also made from premium Bisalloy, making it extremely robust where it’s needed most. So load up and travel in confidence.
At Single Trail, we are committed to products with leading design and engineering innovation standards. Our priority is to continue evolving our range to enhance usability and longevity and we will stand behind your decision to shop with us.
Single Trail for Life is a limited lifetime warranty on the structure of each Single Trail racks and swing-arms to the original purchaser. This includes the rope in our rope fastening & our integrated anti-wobble.
Refer warranty page for more details and exclusions.
- RFS Racks – Refer to our installation video on YouTube.
- Swing Arm for Super RFS – Swing Arm Instructions
